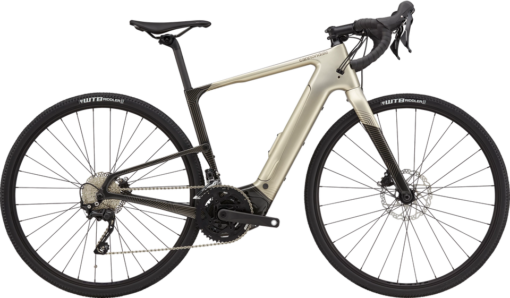

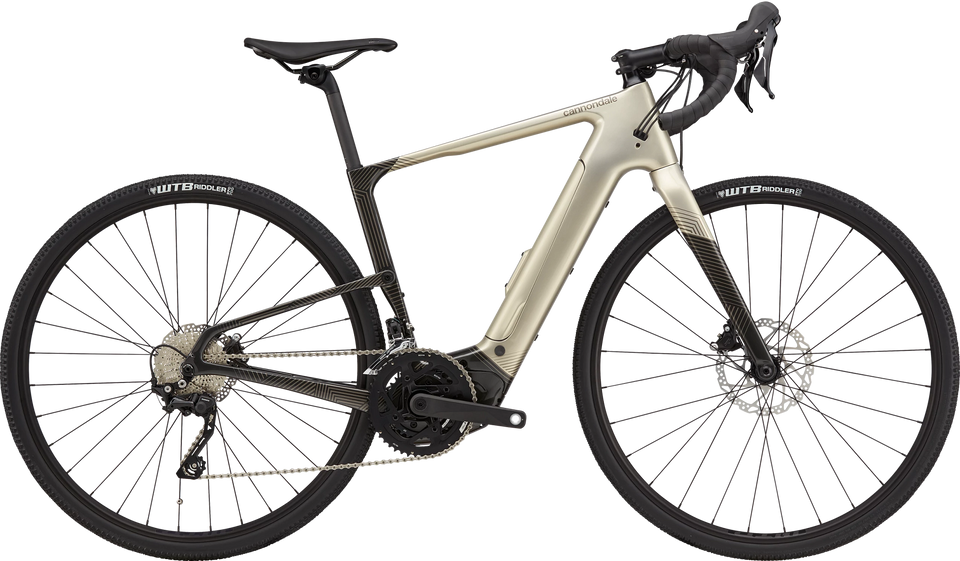

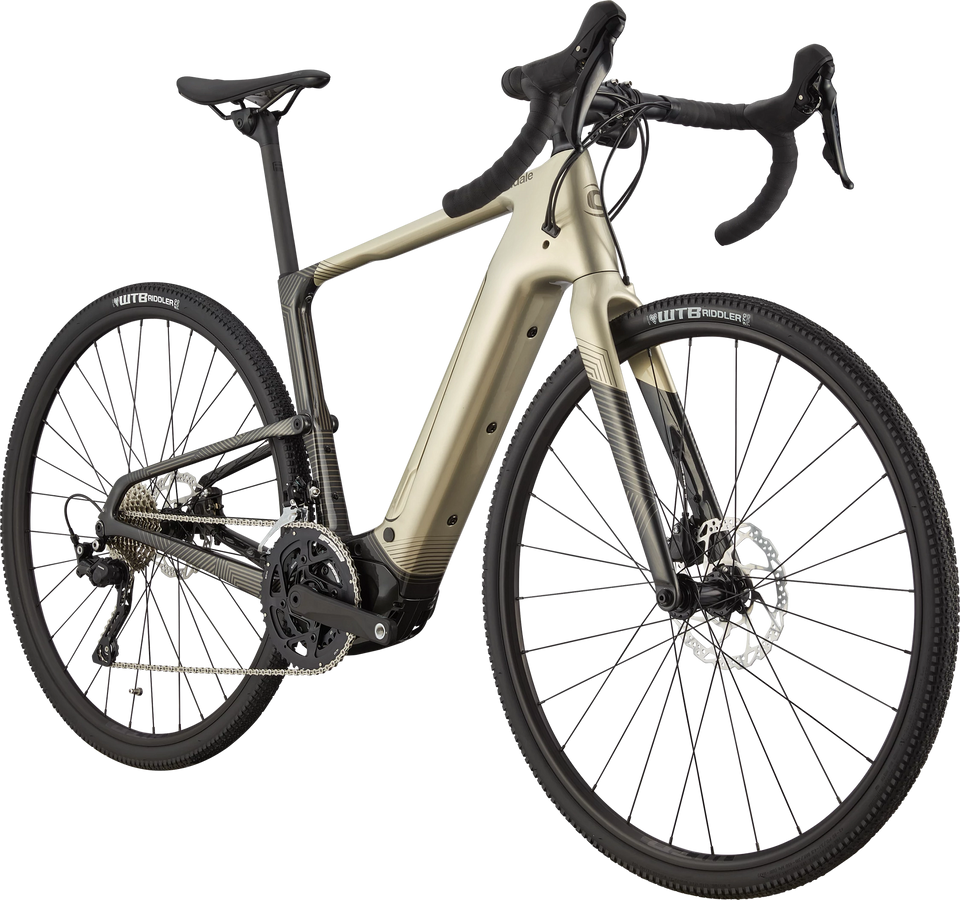

Name: Cannondale Topstone Neo Carbon 4
SKU: 1583
Availability: InStock

More Give. A Lot More Go.

An e-gravel bike like no other. Already the most off-road capable and on-road comfortable gravel bike, we’ve now added a Bosch motor for more power.

Highlights

BallisTec carbon frameset with Kingpin suspension
Shimano GRX 400 10-speed hydraulic disc group

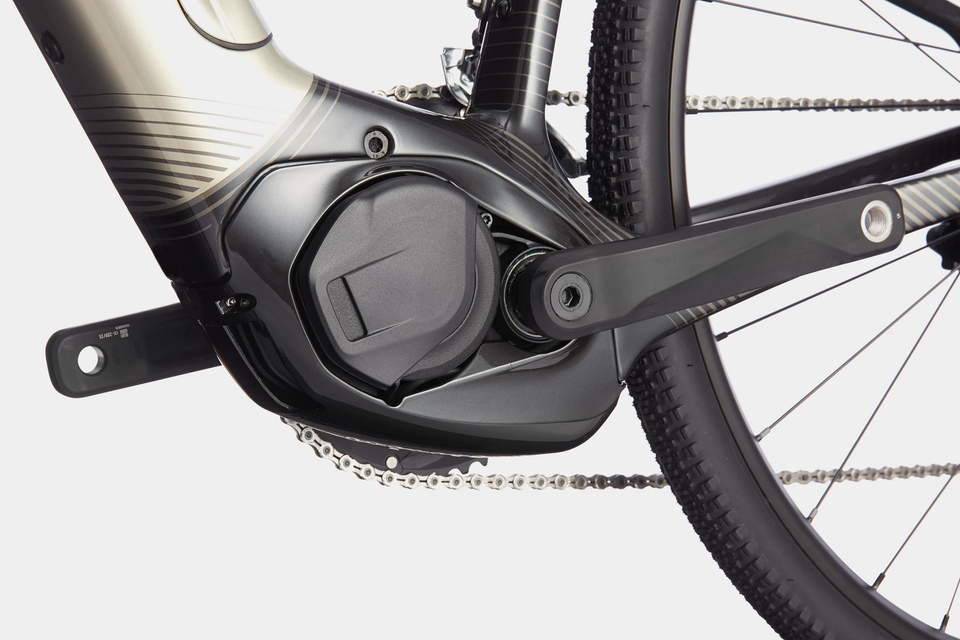

Bosch Performance Line CX 250W drive-unit / 500Wh battery / Range: up to 176km

Where it thrives

Gravel roads, Up and down hills, Out in the elements

What it’s built for

Handling, Comfort, Traction

More Give. A lot More Go.

Multi-Function, Multi-Purpose

Big clearance for big 650b x 40c tires. Internal dropper post compatibility. Refined geometry and a confident rider position all come together to create a machine that’s stable, composed and laugh-out-loud enjoyable to ride.

E-Bike + Gravel

We combined our finest carbon gravel bike chassis with the best motor system from Bosch to create a powerful, go-anywhere, do-anything adventure machine with unreal riding qualities and a range of up to 125 km.

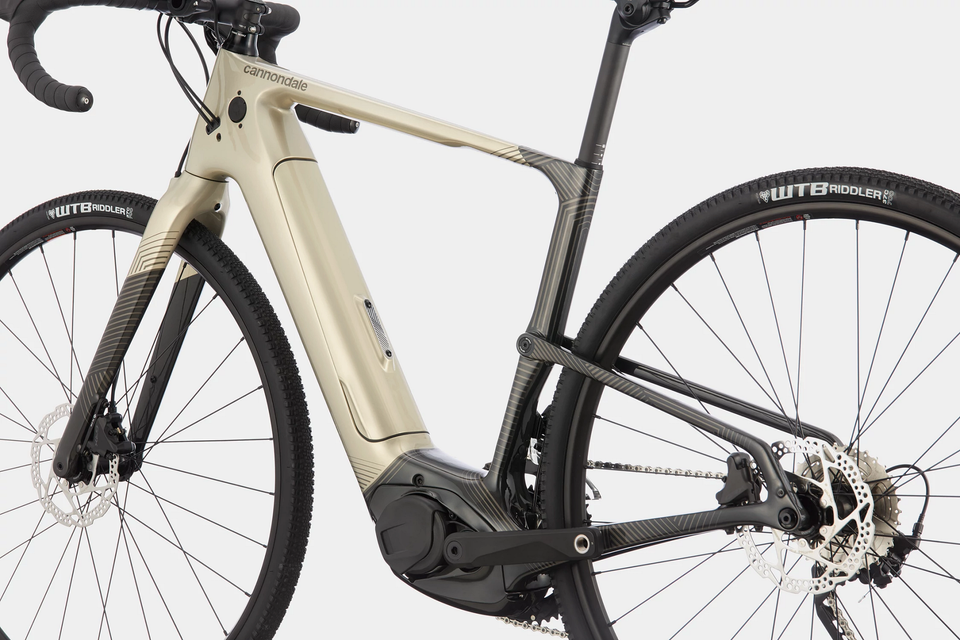

Kingpin Suspension

An outstanding bike needs an outstanding chassis. Our revolutionary Kingpin rear suspension delivers 30mm of plush travel and compliance that is a dream to ride. More grip, more go.

DRIVETRAIN

Chain

KMC X10EL, 10-speed
Crank

FSA Bosch E-Bike, 48/32T
Front Derailleur

Shimano GRX 400, braze-on
Rear Cogs

Shimano HG500, 11-34, 10-speed

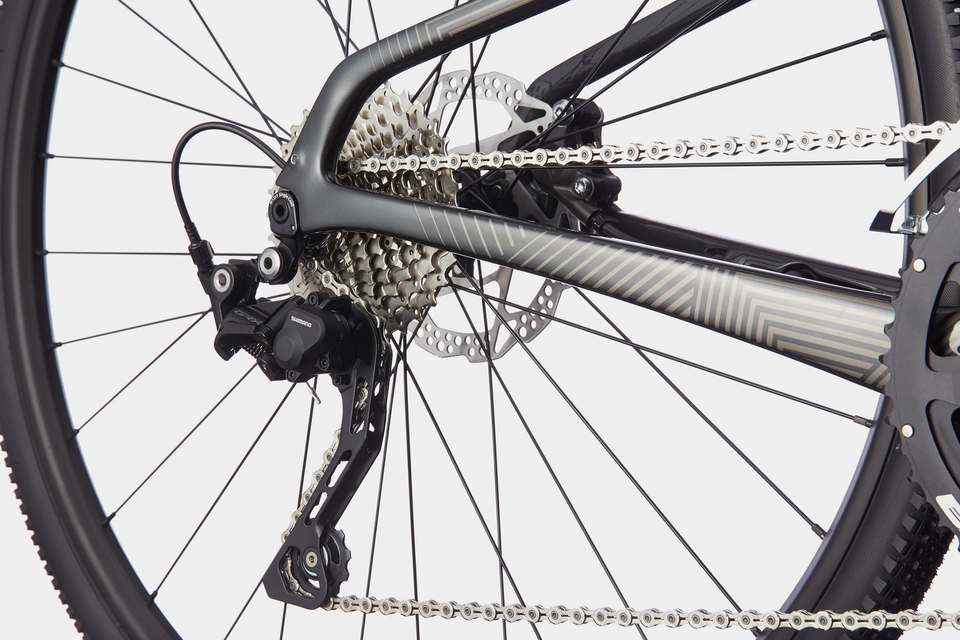

Rear Derailleur

Shimano GRX 400, Shadow RD+
Shifters

Shimano GRX 400, 2×10

FRAMESET

Fork

BallisTec Carbon, 1-1/8″ to 1.5″ steerer, 55mm OutFront offset, flat mount disc, internal routing, 12×110 thru axle
Frame

BallisTec Carbon Frame, removable downtube battery, Kingpin suspension system, 12×148 thru-axle, dropper post compatible
Headset

Integrated, 1.5″ lower to 1-1/8″ upper, 25mm Alloy top cap

WHEELS

Front Hub

Formula cartridge bearing, Centerlock, 12x110mm thru-axle
Rear Hub

Shimano MT400, Centerlock, 12x148mm thru-axle
Rims

WTB ST TCS i23 28h, tubeless ready
Spokes

Stainless Steel, 14g
Tire Size

37

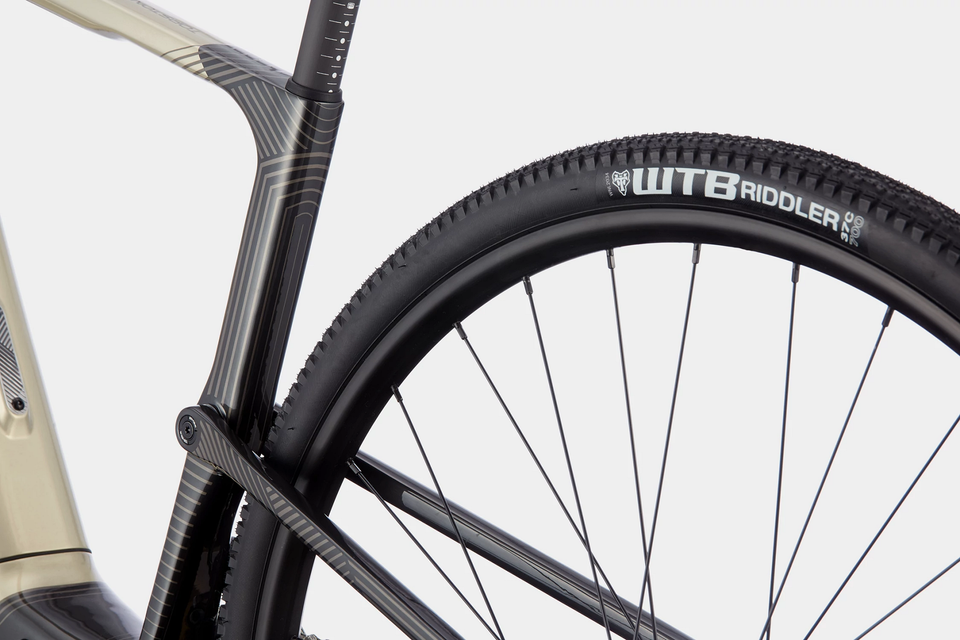

Tires

WTB Riddler Comp, 700 x 37c
Wheel Size

700c

BRAKES

Brake Levers

Shimano GRX hydraulic disc
Brakes

Shimano GRX hydraulic disc, 160/160mm RT54 rotors

COMPONENTS

Grips

Cannondale Bar Tape, 3.5mm

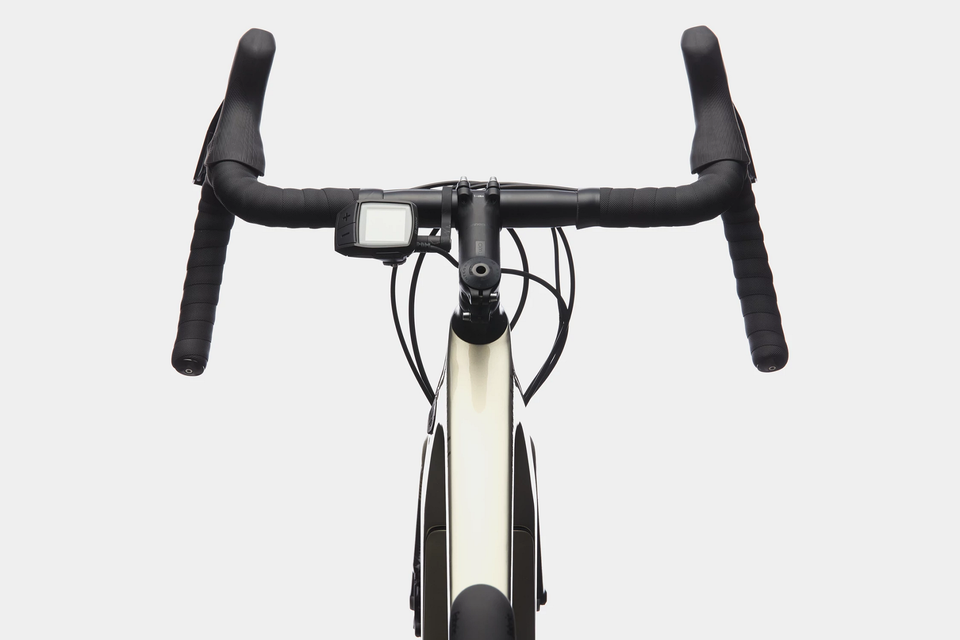

Handlebar

Cannondale 3, butted 6061 alloy, 16 deg flare drop
Saddle

Fabric Scoop Shallow Sport, steel rails
Seatpost

Promax SP-2032, Alloy, 27.2
Stem

Cannondale 2, 6061 Alloy, 31.8, 7°

E-SYSTEM

E-System Battery

Bosch PowerTube 500Wh
E-System Charger

Bosch 4A
E-System Display

Bosch Purion

EXTRA

Extra 1

Removable fender bridge
