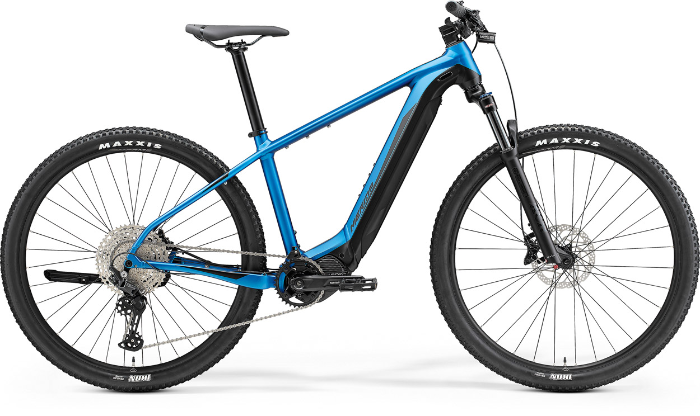

Merida eBIG NINE 600

01. FRAMEeBIG.NINE LITE III; MAT aluminium; 29″ WHS; 148×12 AST; intube; max. 630 Wh02. SIZESS-M-L-XL03. FORKSuntour XCR34 LOR DS; Air Boost; 100mm; Tapered; 51mm fork offset04. DRIVE UNITShimano EP8; 85Nm05. BATTERYShimano E8036; 630Wh06. BATTERY CHARGERShimano EC-E6002; 2A07. DISPLAYShimano SC-E500308. REAR DERAILLEURShimano Deore RDM5100 1109. SHIFTERSShimano Deore M5100 1110. BRAKE – FRONTShimano M4100; 4 piston11. BRAKE – REARShimano M4100; 2 piston12. ROTOR – FRONTShimano RT30; 180 mm13. ROTOR – REARShimano RTEM300; 180 mm14. CHAINWHEELShimano CRE70-B; 34 ATC15. CRANK/SIZEShimano FCEM600; 165 mm for all sizes16. CHAINShimano HG601-1117. CASSETTEShimano M5100; 11-51 ATC; 11 Speed18. PEDALSVP; VPE-53719. HANDLEBARMERIDA Expert eTR; 760 WHB; 20 RHB20. HANDLEBAR STEMMERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD21. STEM LENGTH50mm all sizes22. SEAT POSTMERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB23. SADDLEMERIDA Comp CC; V-mount24. HUB – FRONTShimano MT400-B; 110×15 WHF; 32 SPH; Centerlock25. HUB – REARShimano MT400-B; 148×12 WHR; 36 SPH; Centerlock26. AXLE – REARMERIDA EXPERT TR; including removeable lever, 6/4mm allen key27. RIMSMERIDA COMP CC; 20 IWR; MAT aluminium28. TYRESMaxxis Ikon; 29×2.2″; kevlar bead31. KICKSTANDCL-KA98, 29″33. OTHERE-BIKE POWER STVZO E115, reverse MERIDA Custom Mount34. OTHERUSB REAR Light CG-214RG
